Regarding graphs’ section on Fleet Manager, please follow the following procedure:

  1. Close Fleet Manager Software.
  2. On your local Documents   directory follow the path: Documents\Helintec\Fleet\Environments and open the file “Defaults.em_prs” (right click and choose edit with notepad++)
  3. On the line   à  <DefaultPreset>DCS</DefaultPreset>   à see highlighted the folder that we will open next. In this case the folder is named “DCS”.
  4. Go back to Documents\Helintec\Fleet\Environments and choose the highlighted folder – in this case, folder DCS.
  5. Right click+edit with notepad++ on the file Settings.em_prs
  6. Find the line

 <ID>EntityGridRightPanelVisible</ID>

    <Setting>True</Setting>

And if highlighted value is false, turn it to “True”



  1. Find the line

<ID>EntityGridRightPanelWidth</ID>

    <Setting>1120</Setting>

And make sure the number is not 0 – In this case, the width is set to 1120.

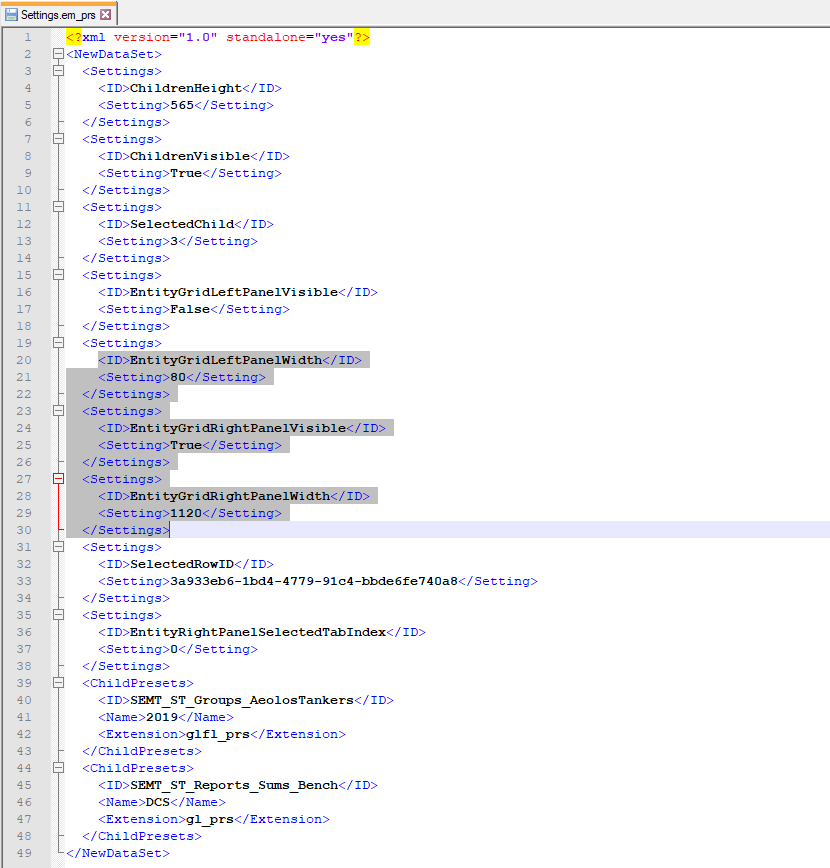

  1. Cross check the values of highlighted fields (numbers) in screenshot attached to make sure they are valid.
  2. Save the file.
